Oil Filter Relocation & Cooling Kit Low Profile Block Adaptor Version with Aeroflow Oil Cooler

Enhance your engine‚ reliability and serviceability with the Franklin Performance Oil Filter Relocation & Cooling Kit. This complete package combines our precision-machined billet oil filter relocation system with a high-performance Aeroflow oil cooler and 4 metres of 100 Series braided hose‚Äîideal for street, track, and high-performance applications across a wide range of engines.

Features:

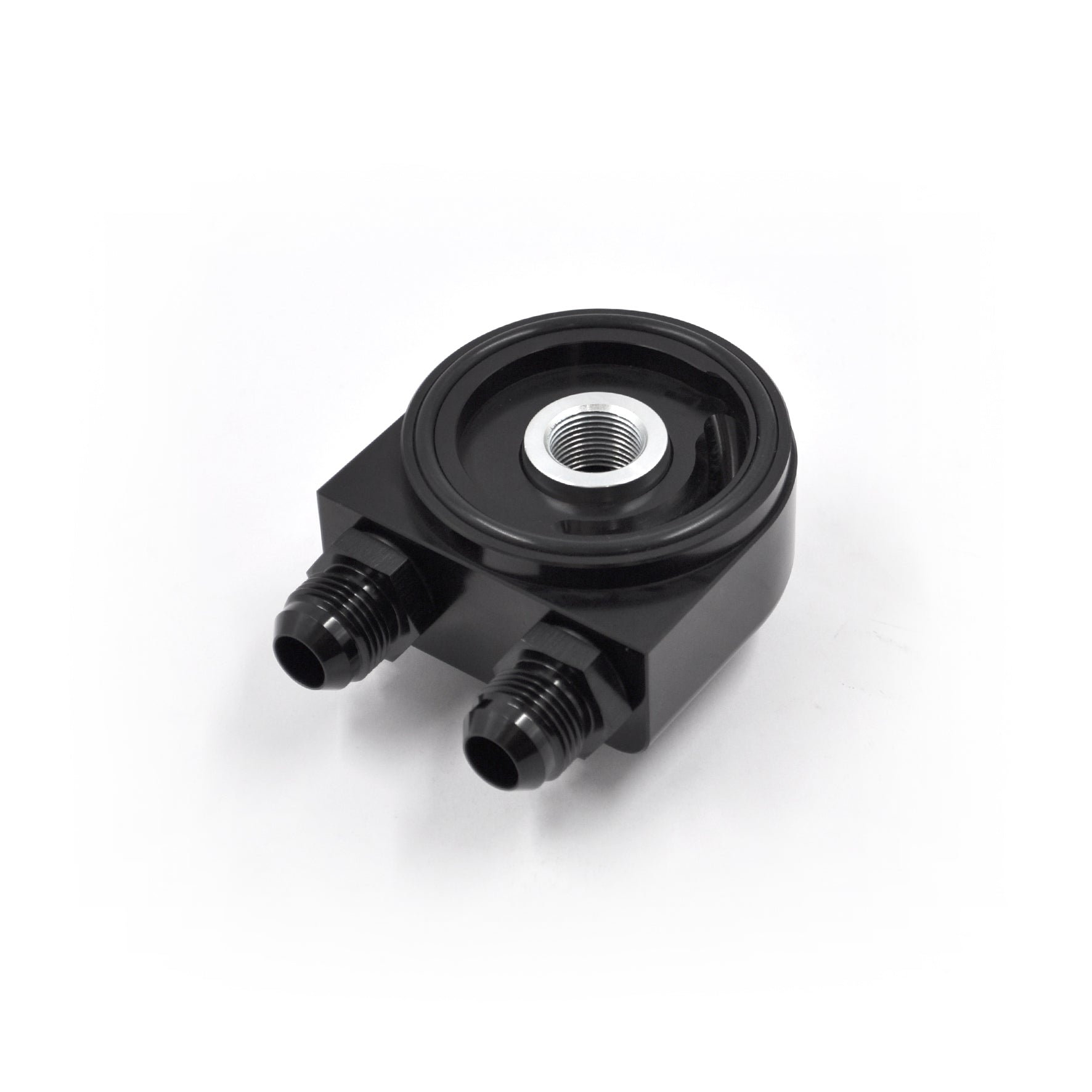

Low Profile Block Adaptor: Our CNC-machined low profile adaptor bolts directly to your engine block, providing a compact, clean oil filter relocation solution with minimal added height.

Billet Aluminium Components: The low profile adaptor and remote filter mount are CNC-machined from high-grade billet aluminium in-house for strength, durability, and a precise fit.

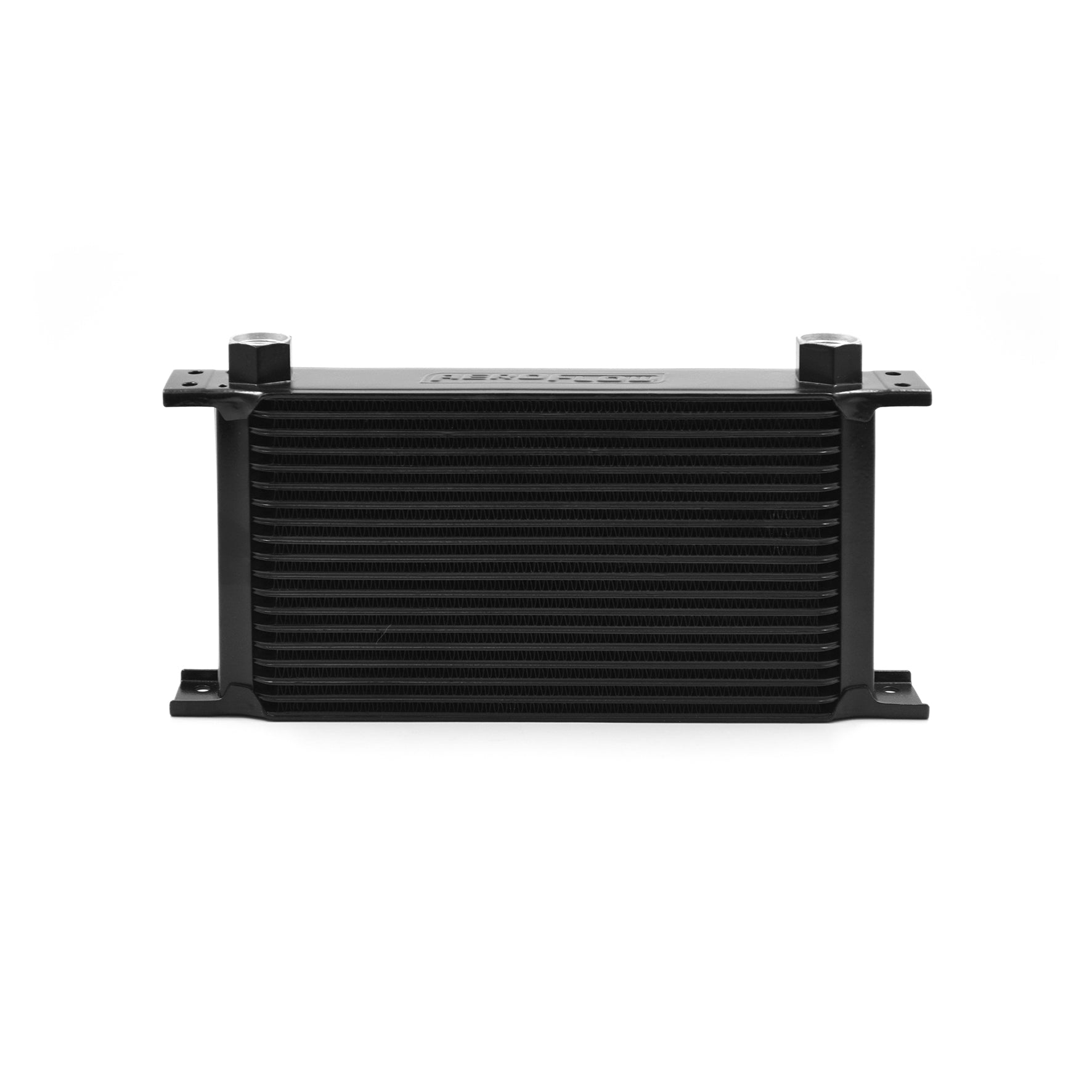

Aeroflow 10-Row Oil Cooler: Compact and efficient (280mm x 200mm x 50mm core), designed to reduce oil temperatures effectively without causing excessive pressure drop.

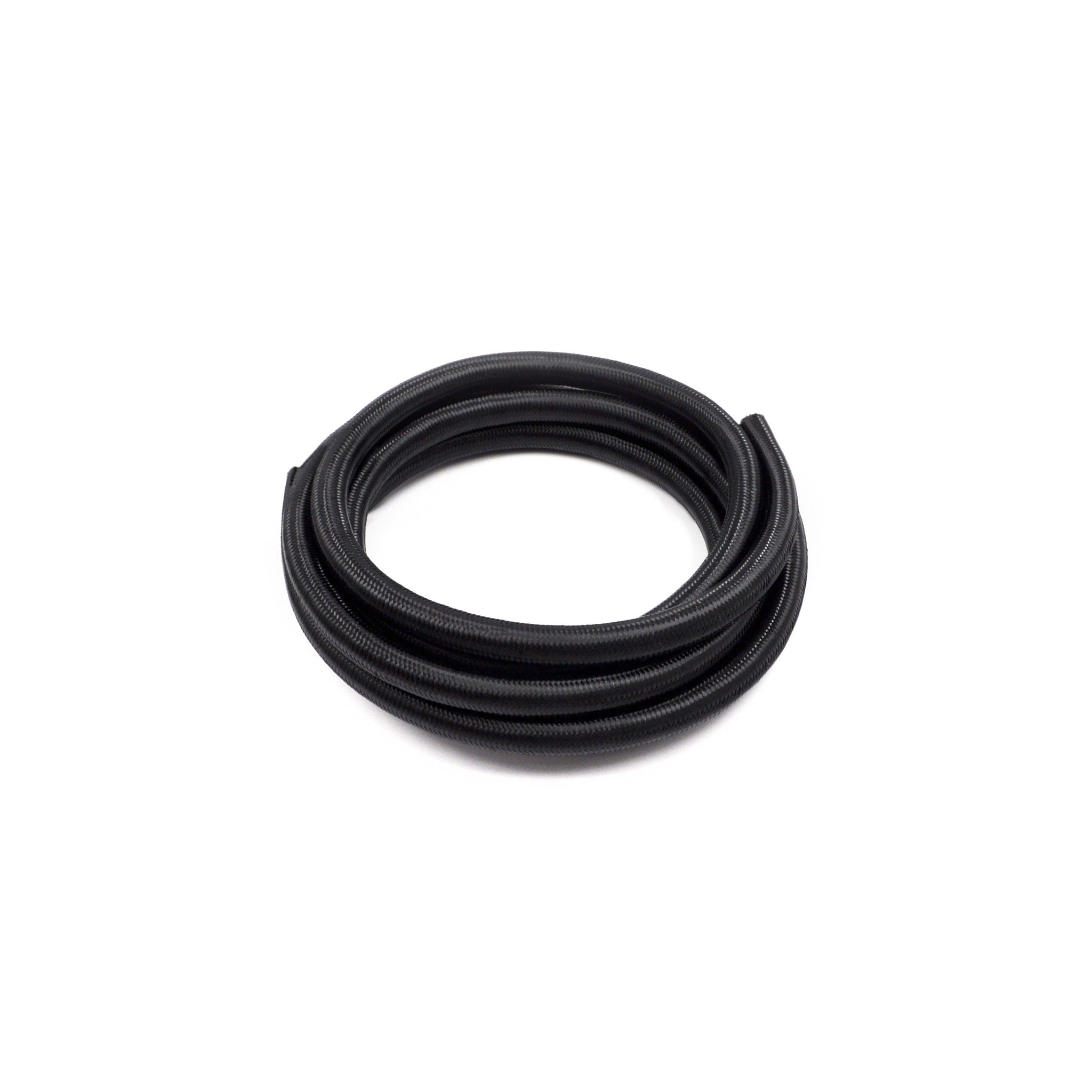

4 Metres of Black 10AN 100 Series Hose: Durable black stainless steel braided hose for flexible routing and long-lasting performance.

AN-10 ORB Ports: Standard on both the low profile adaptor and remote mount for easy integration with common performance fittings.

Thread Size Variants: Select your block adaptor thread from the following options to match your engine’s oil filter:

• M18 x 1.5

• M20 x 1.5

• M22 x 1.5

• M24 x 1.5

• 3/4" UNF

• 13/16"-16 UNF

• 7/8" UNF

• 1"-12 UNF

• 1"-14 UN

• 1"-16 UN

Filter Mount Thread Options: Choose between:

• 3/4" UNF

• M20 x 1.5

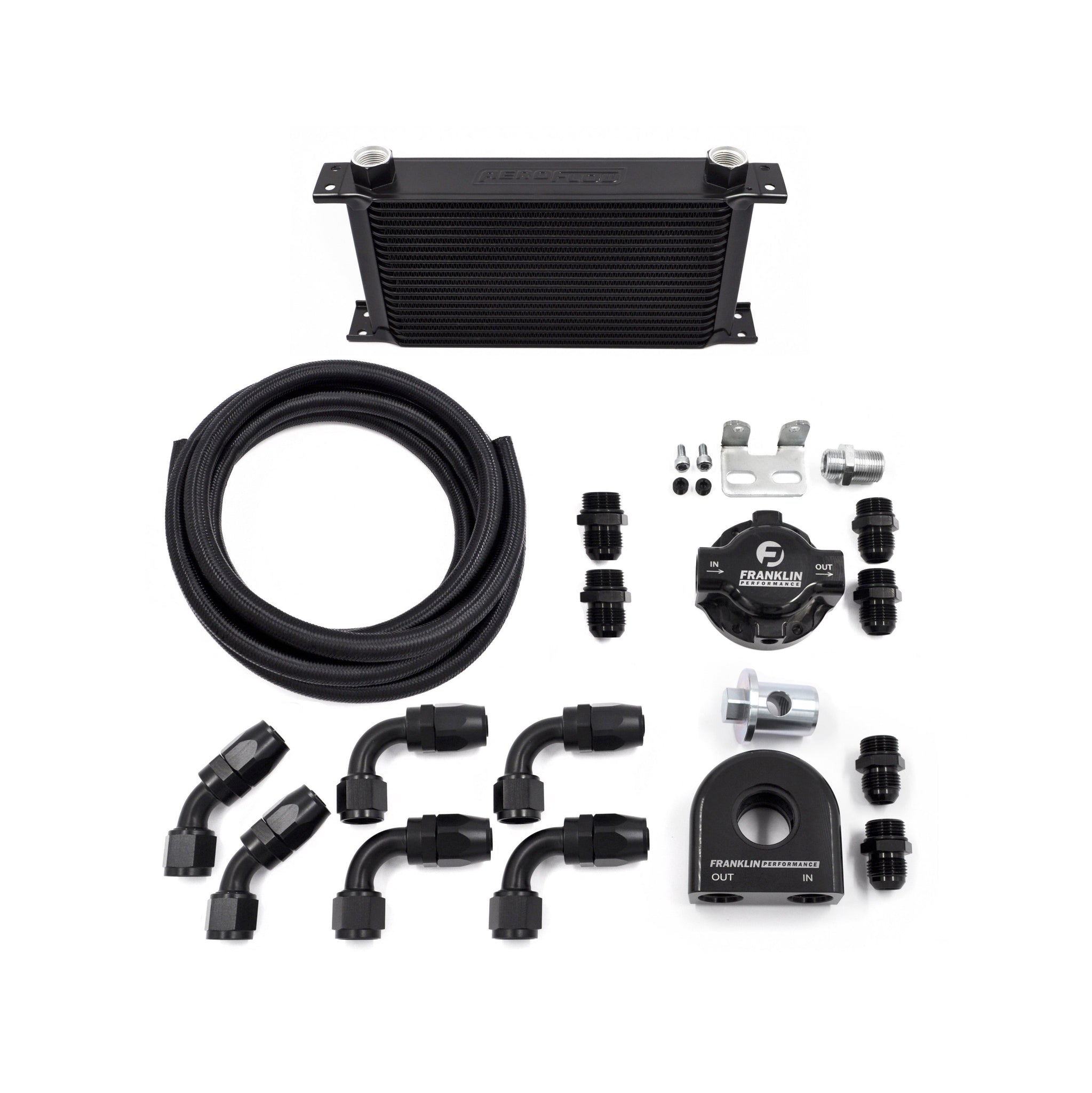

Includes:

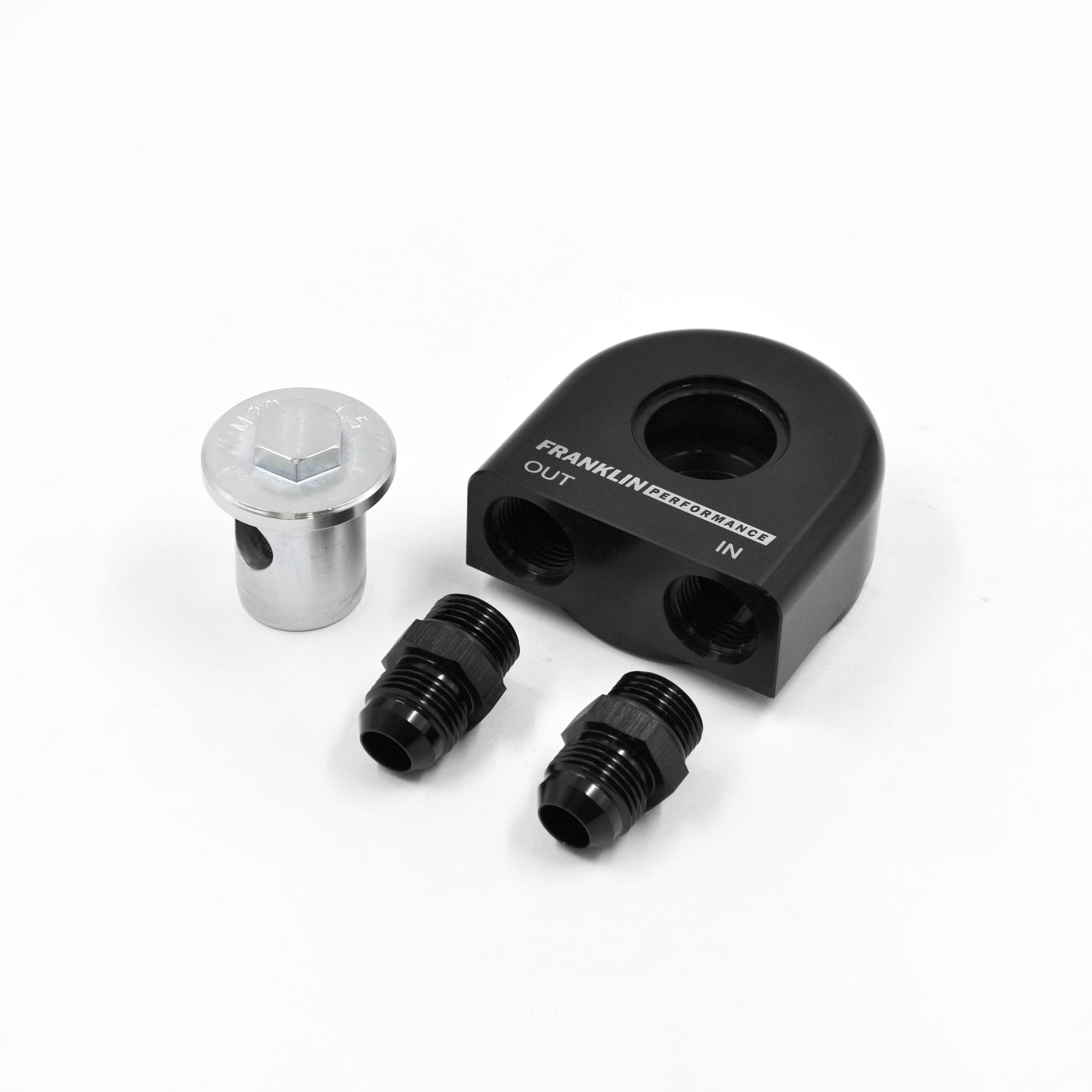

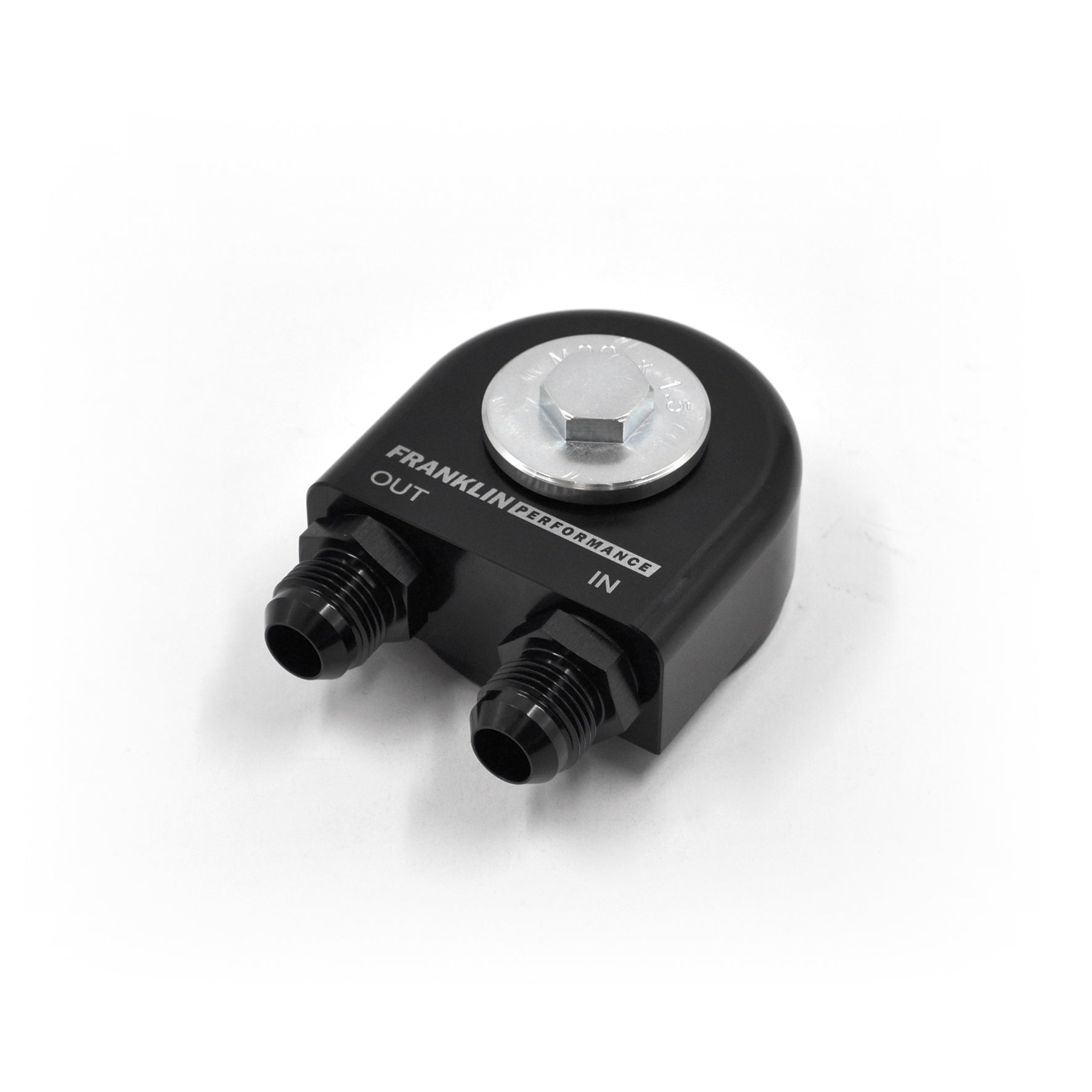

• Franklin Performance Oil Filter Relocation Kit (low profile block adaptor + remote mount)

• Aeroflow 10-Row Oil Cooler

• 4 metres of 10AN 100 Series braided hose

• 4x AN-10 90¬∞ Hose Ends

• 2x AN-10 45¬∞ Hose Ends

• 6x AN-10 to ORB Adaptors

Ideal for improving oil cooling, relocating the filter for easier service access, and protecting your engine under demanding conditions. Proudly designed and manufactured in New Zealand by Franklin Performance.
